ART & PERFORMANCE
A design & engineering ultralight artwork
Meticulously cratfed from a solid block of 6061 T6 forged alloy, they combine style with strength and lightness to enhance dynamic performance. This balance of strength and style exemplifies LLAGOS dedication to engineering excellence and luxury craftsmanship
JUST BEAUTIFUL AND LIGHTWEIGHT... WELL, MUCH MORE
Pure shapes integrated in the design of your supercar with the single mission of enhance its beauty and improve its performance
Form follows function with the aim of saving weight as much as possible and at the same time improving and merging with the shapes of the car
PURITY OF FORMS WITH SINGLE MISSION: ENHANCE THE BEAUTY OF YOUR CAR WITH MAXIMUM LIGHTNESS
A design & engineering ultralight artwork
A sculpture designed to be as light as possible and fit perfectly into the shapes of Italian supercars
Thanks to our extensive experience in manufacturing rims for F1, high competition and for the most prestigious One Off, supercars and hypercars, we have reinforced the key points of the rim and at the same time removed superfluous material where it was not necessary to obtain maximum lightness
Every detail of the design has been carefully studied and negotiated to create a work of art with perfect proportions, harmonious lines and a powerful personality, while at the same time being as light and resistant as possible
The perfect combination of beauty and performance
DEEP CHARACTER

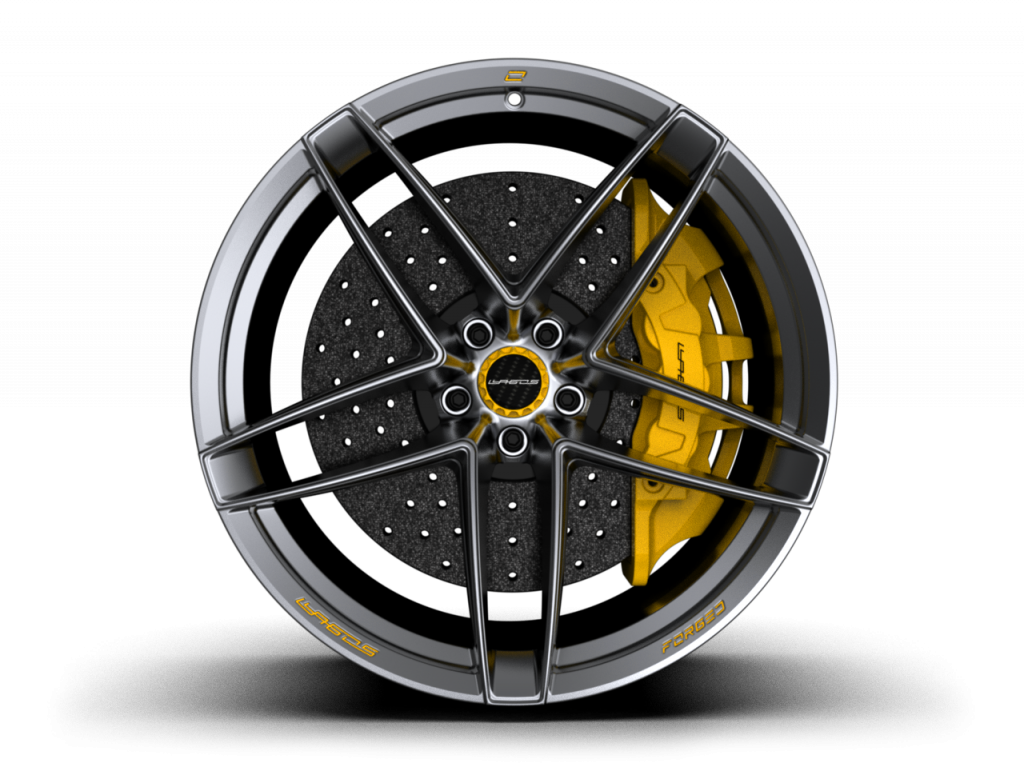

Pure, fluid lines with a slubtle and perfect curvature, marking the stroke lines that form a V from which flows a deep surface that characterizes the design of the OMOLOGATA model. This depth gives a unique and personal character to this model and is its hallmark, emphasizing its beauty and deeply marking its aggressiveness and sculpted design
The surface that is extruded diagonally in a sotf V shape intersects with a convex circular design volume where the screws are housed. This volume has been reduced to the maximum in order to reduce weight, demonstrating once again that an engineering choice can define the aesthetic appearance and that the perfect balance between design and engineering can be found when forms follow a function
SCULPTED DETAILS

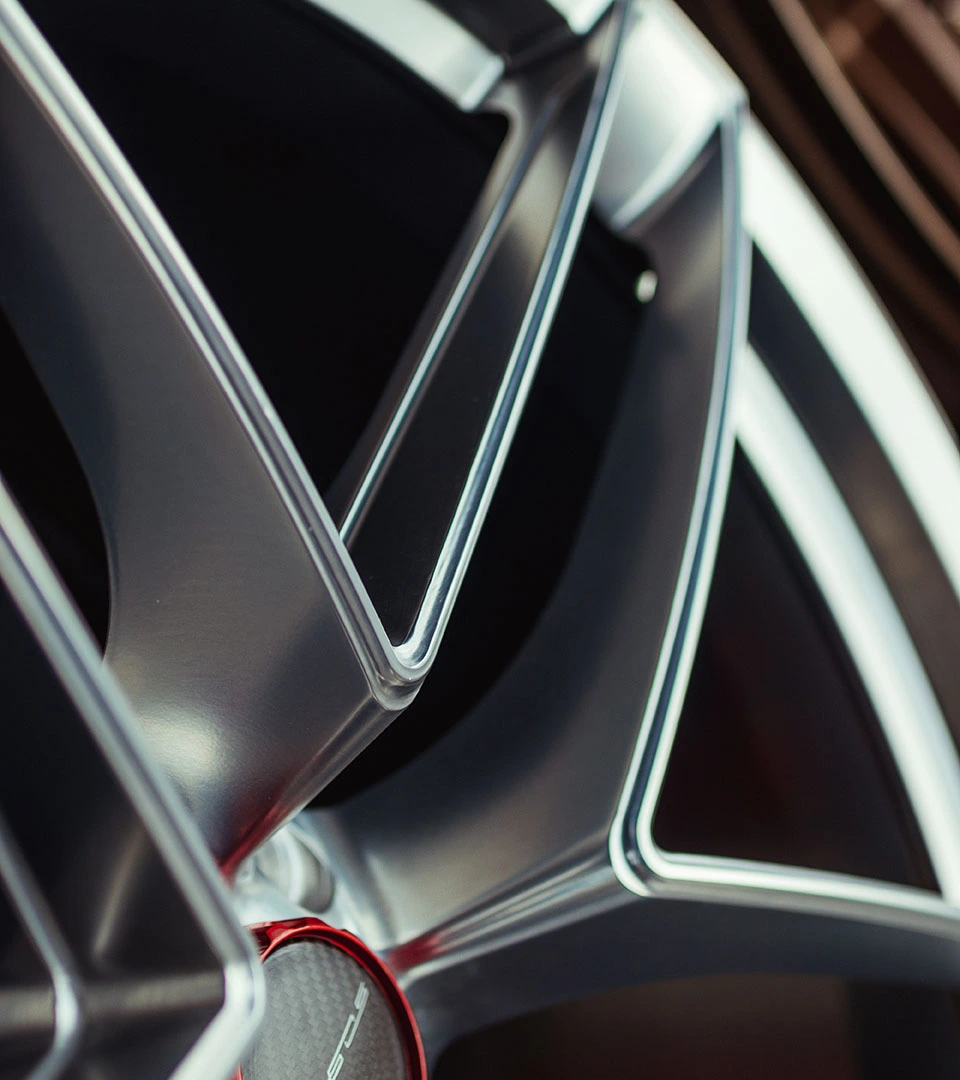

The trace lines on the front view are marked by our characteristic diamond-cut surface, very fine on this model, but which highlights the design of the rim in a subtle but powerful way, studied so that its diameter visually sames 1ʺ larger
Our high-precision machining has allowed us to sculpt a milling on the outer surface of the arms, removing superfluous material and highlighting the outline of their volumes. This outline blends perfectly with the volume of
the arms, emphasizing our attention to detail that only the highest precision machining and finishing processes that lasts several days can achieve
TIMELESS FOREVER

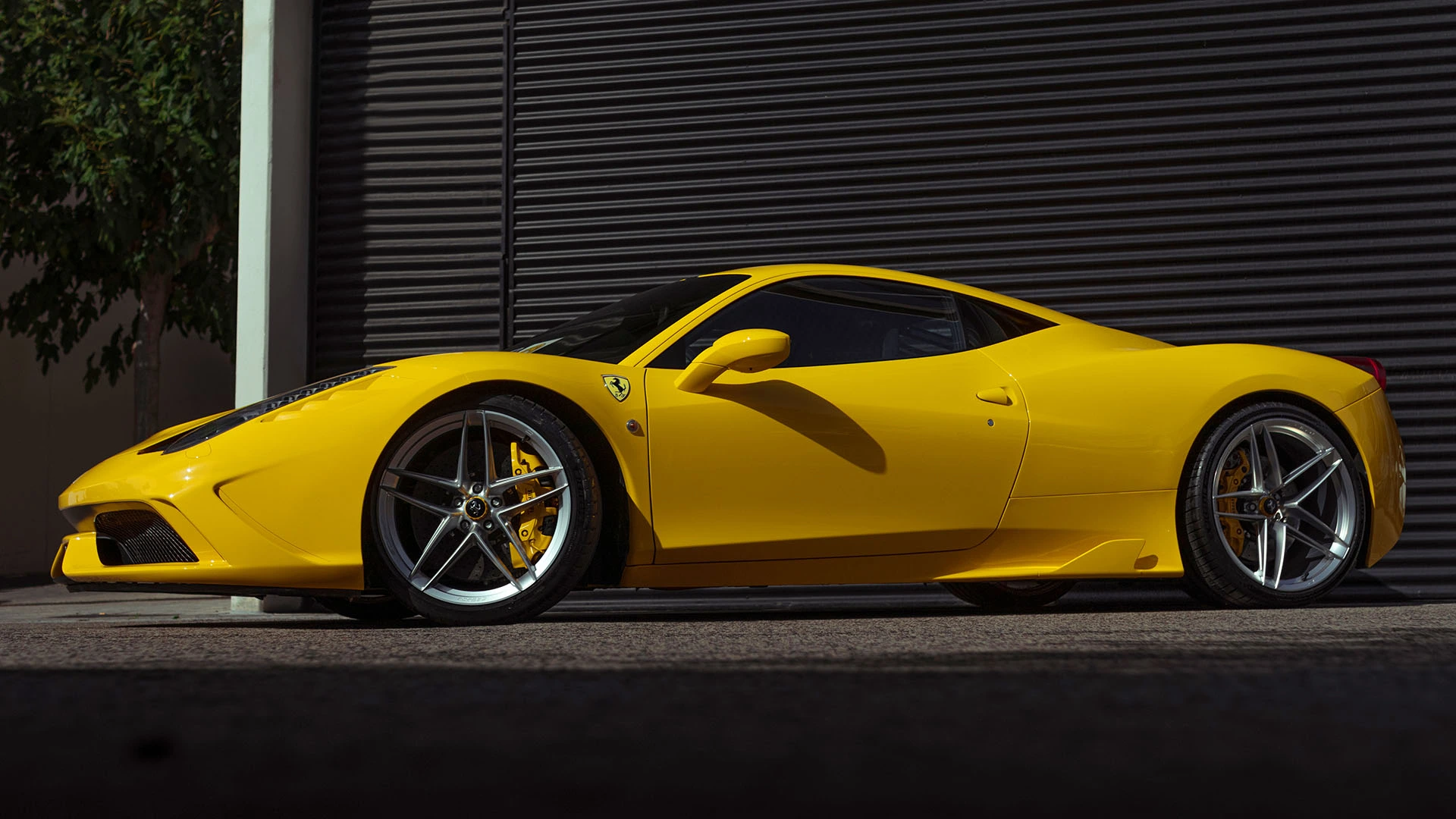

A timeless design that fits perfectly into both contemporary supercars and modern classics
With this model we demonstrate once again how design knows how to combine technical-functional needs with beauty
A fusion of the highest Formula 1 engineering with skilled craftsmanship, so that the final product is a high-performance work of art
FEATURES
TOP QUALITY MADE IN EUROPE
The entire engineering and manufacturing process is certified with the official parameters for the ISO 9001: 2015 quality management system and KBA (Federal Motor Transport Authority), certified by TÜV Thuringen and TÜV Rheinland that allow to comply all the necessary parameters and quality standards to be able to pass all the
demanding European homologations and to ensure to all our customers the highest level of safety and reliability other than the best after-sales support
Designed, engineered and manufactured in EUROPE with the highest technology, skilled craftsmanship and the pursuit of excellence
All processes are carried out with the highest quality standards, complying with the most demanding European safety regulations and with an obsession for perfection in all details
We use the highest quality raw materials and all manufacturing processes pass the strictest quality controls
CONFIGURATION
1-Piece Lightweigt Monoblock
AVAILABLE MEASUREMENTS
18” | 19” | 20” | 21” | 22” | 23”
CENTER LOCK AVAILABLE
Center-Lock and 5-lug options available
COMPATIBILITY
OEM TPMS compatible
LIFETIME WARRANTY
Lifetime limited structural warranty
2 year finish warranty
OPTIMAL OFFSET
No spacers required, fits flush whit the wheel arches creating a sporty apperance and at the same time increasing the track width improving the dynamic behavior of the car and cornering speed
CUSTOMIZATION
It enables further personalization options with numerous variants and sophisticated surface finishes to create your own masterpiece that is as unique as you are
6061 T6 AERO SPACE GRADE FORGED ALUMINIUM
For the manufacture of LLAGOS Forged Wheels we use the best lightest forged aluminium of the highest quality and resistance
The forged aluminum used for the manufacture is of aerospace-grade 6061 with T6 quality tempering treatment, to give more hardness to the surface of the material
The material is forged at more than 500 degrees of temperature with hydraulic presses at a pressure of 12.000 tons
The highest quality forged aluminium and Heat-treated for additional integrity offers a much higher resistance than other materials and manufacturing processes, which makes it possible to manufacture a much lighter and more resistant rim and thus reduce the weight of the unsprung masses to a minimum, substantially improving the dynamic behavior of the car with greater safety and with a much higher resistance to effort and fatigue
LIGHTWEIGHT OBSESSION
They are not only designed to be beautiful and enhance the design and exclusivity of your car, we always apply the concept of “form follows function”
Each design and each detail of the rim is studied to reduce the weight of the rotational masses as much as possible and thus improve the dynamic behavior of your car, increase its performance, reduce braking distance and energy consumption
Thanks to our extensive experience in the manufacture of rims for Formula 1, high competion, for the most prestigious One Off and for the best high performance supercars and hypercars, we apply the optimal engineering parameters in each area of the rim to obtain maximum resistance in key points and at the same time achieve maximum lightness by eliminating superfluous material where it’s not necessary
The lightening pockets are milled into the back of the wheels reducing unsprung mass/weight on the wheel hub
FORMULA 1 ENGINEERING
Extensive experience in engineering for Formula 1, high competition, for the most prestigious One Off, supercars and hypercars applyed to your car
The design is developed to be as lightweight as possible but with maximum resistance and FEA-tested to the load rating required for safe operation of the specific vehicle for which the wheel is being built
The structural calculations are carried out with one of the best and most prestigious brands (NASTRAM), which are the most reliable
HIGH PRECISION CNC MACHINED
The machining process of a set of LLAGOS FORGED wheels can take several days from the moment the solid aluminium block begins to be machined until the surface finish is perfect
In the machining process over 70% of the original material is removed
They are machined on high-precision numerical control machines with a machining tolerance of 0.005 milimeters
Our precision limit is 0.025 millimeters in concentricity and 0.025 millimeters in hole position
For all the hole position to be below 0.25 millimeters, the overall concentricity of the holes must be a maximum of 0.14 millimeters
CUTTING EDGE TECHNOLOGY + CRAFTSMANSHIP TO ACHIEVE A PERFECT FINISH
When the machining process is finished and before the painting process begins, the wheels are subjected to the shot blasting process, without which it would not be possible to achieve a perfect final finish.
This process is divided into 6 steps that combine manual goldsmith work with the highest technology:
1. Trimming and chamfering
2. Deburring
3. Sanding
4. Blasting
5. Degrease carried out in many steps including ultrasound cleaning
6. Antioxidant pre-treatment of the material
PAINTING PROCESS ECE R124 STANDARD HOMOLOGATED
Our degreasing, surface antioxidant pre-treatment and painting process is homologated with the parameters of the ECE R124 standard, today the most restrictive and demanding homologation standard in Europe
The painting process is carried out in 4 phases after ultrasonic cleaning:
1. Molten powder primer at 230 degrees celsius
2. High-quality liquid or molten powder paint in the chosen color reference
3. Varnishing with liquid varnish with drying at 160 degrees celsius
4. High quality transparent powder coat for satin finishes later liquid varnish
3D QUALITY CONTROL
Once the entire process is complete, each wheel is rigorously inspected to verify that it meets all of the above quality and precision parameters
The quality control is carried out with a three dimensional measuring machine with an error tolerance of 0.004 milimeters
SUSTAINABLE PERFORMANCE
Improved performance and dynamic behavior thanks to weight savings in rotational masses and aerodynamics, the use of high quality and innovative ultra-light materials and excellence in engineering to reduce energy consumption and improve safety, reducing braking distance, improving acceleration and cornering speed
Furthermore, our production processes follow the implementation of a Quality Management System according to the ISO 9001 international standard to satisfy customer requirements and an Environmental Management System according to the international standard ISO 14001, systematizing the environmental aspects that are generated in each of the activities carried out promoting environmental protection and pollution prevention from a point of view of balance with socioeconomic aspects
Among other environmental advantages, we optimize the management of resources and waste, reducing the negative environmental impacts derived from our activity or those risks associated with accidental situations
APPLICATIONS
8×18”/9×19”
8×19”/9×19”
9×20”/9×20”
9×19”/10×19”
9×19”/10.5×20”
9×20”/10.5×20”
9×20”/10.5×20”
9×21”/10.5×21”
9×21”/10×21”
9×20”/12×21
9×21”/12×21”
8×18”/9×19” VARANO EDITION
9×20”/11×20” MARANELLO EDITION
9×20“/12×21” MARANELLO EDITION
9×20”/11×20” MARANELLO EDITION
9×20“/12×21” MARANELLO EDITION
9×20”/11×20” MARANELLO EDITION
9×20“/12×21” MARANELLO EDITION
9×21“/12×22” MARANELLO EDITION
9×20”/11×20” MARANELLO EDITION
9×20“/12×21” MARANELLO EDITION
9×21“/12×22” MARANELLO EDITION
8×20”/10.5×20” MARANELLO EDITION
8×20”/10.5×20” MARANELLO EDITION
9×20”/11×20” MARANELLO EDITION
9×20“/12×21” MARANELLO EDITION
9×21“/12×22” MARANELLO EDITION
9×20”/11×20” MARANELLO EDITION
9×20“/12×21” MARANELLO EDITION
9×21“/12×22” MARANELLO EDITION
9×20”/11×20” MARANELLO EDITION
9×20“/12×21” MARANELLO EDITION
9×21“/12×22” MARANELLO EDITION
9×20”/11×20” MARANELLO EDITION
9×20“/12×21” MARANELLO EDITION
9×21“/12×22” MARANELLO EDITION
9×20”/11×20” MARANELLO EDITION
9×20“/12×21” MARANELLO EDITION
9.5×21“/12×22” MARANELLO EDITION
10.5×20“/12×21” MARANELLO EDITION
10.5×21“/12×22” MARANELLO EDITION
9×20”/11×20” MARANELLO EDITION
9×20“/12×21” MARANELLO EDITION
9.5×21“/12×22” MARANELLO EDITION
9×20”/11×20” MARANELLO EDITION
9×20“/12×21” MARANELLO EDITION
9.5×21“/12×22” MARANELLO EDITION
10×21” /12×21” MARANELLO EDITION
10×21” /12×22” MARANELLO EDITION
9.5×20“/12.5×21” MARANELLO EDITION
9.5×21“/12.5×22” MARANELLO EDITION
9×22“/12×23” MARANELLO EDITION
10.5×23/12×23”
9×20”/12×21”
9×20”/13×21”
9×20” ET48/10.5×20” ET47
9×20” ET48/10.5×21” ET47
9×21” ET48/10.5×21” ET47
9×20”/12×21”
9×21”/12×21”
9×20”/11.5×21”
8.5×20”/11.5×21”
8.5×20”/12×21”
9×20”/12×21”
9×20”/12×21”
9×20”/12×21”
